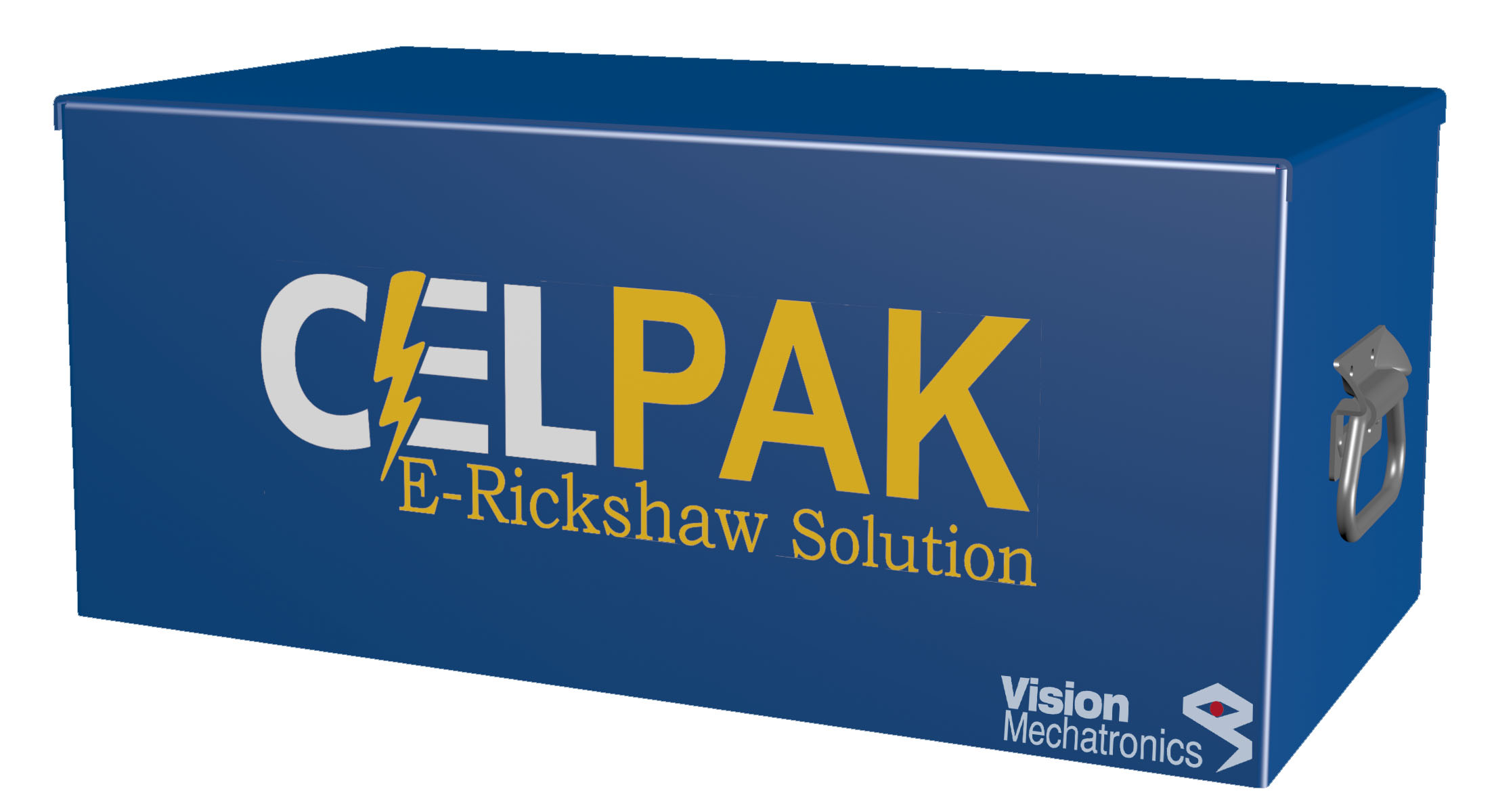

CELPAK

E-Rickshaw Solution

CelPak is the perfect companion for E-Rickshaws. With german collaboration we are able to offer a Lithium CelPack Which requires absolutely zero maintenance. Its long life and high power density offer total value for money. The CelPak is approximately 50% more efficient resulting into better milage and higher profits per ride. Fast chargin enables maximized drive time throughout the day. It's economical, pocket friendly and optimally suited for your E-Rickshaws.

CelPak
  1. Lithium Advantage
  2. Fast Charging
  3. Zero Pollution
  4. Longer Battery Life
  5. Non Flammable
  6. Non Explosive

Highlights

GERMAN ENGINEERING GERMAN ENGINEERING
MADE IN INDIA MADE IN INDIA
QUALITY PRODUCT QUALITY PRODUCT
13.5 Years Life* 5 Years Life*
Higher Returns Higher Returns
Fast Charging Fast Charging

AVAILABLE IN FOLLOWING RANGES

 20Ah
 40Ah
 60Ah
 100Ah
 160Ah
 200Ah
 12V
 24V
 36V
 48V
 60v
 96V
  We can develop customized CELPAK for E-Rickshaws based on Lithium Batteries.

Lithium Battery based CELPAK -
High Performance Cell


Regarding the lithium cells we also stand out from the usual market standard - lithium-iron phosphate (LiFePO4). Instead, we use lithium iron Manganese phosphate (LiFeMnPO4). The doping with Manganese will increase the cell's life expectancy and performance. The conceptual design and chemistry of our Li-cells renders them intrinsically safe, this means in case of a problem the cells can not catch fire. By the way, most cell phone or laptop batteries are not intrinsically safe! Lithium cells are almost completely recyclable. And - in contrast to lead batteries - they do not contain any hazardous material.

A QUICK COMPARISON

Parameter Lead Acid Battery CELPAK
Efficiency Low about 60% As high as 95%
Energy Cost High Low
Weight Bulky/ Heavy Weight Light Weight
Sound Emission Silent Silent
Space Requirements Large Space very handy
Life Cycle Lesser Life Cycle Longer Battery Life 5 years* (2500 cycles*)
Pollution Yes Green
Vested Interest Yes (Lead Theft Possible) No vested interest
Repairs Frequent Replacement Long Life
Operating Temperature 25°C to 35°C -25°C to +50°C [-13F to 122F]
Charging Time Long Charging Time (Min 8Hrs) Shorter Charging Time (0.5 / 1/ 2/ 3 Hrs)
Operational Cost Yes No
Plug & Play Ability - Yes
Maintenance Yes No

TECHNICAL SPECIFICATION

Capacity 60Ah 100Ah
Max. Charge/Discharge Current 60A 100A
Dimensions(WxHxD) 550x230x290mm(Stain less steel casing) 606x305x290 mm(Stain less steel casing)
Weight 34 kg 47 kg
Cell Type LiFeMnPO4 LiFeMnPO4
Cycles 2500 2500
Dod max. 80% max. 80%
Efficiency 95% 95%
Operating Temperature -25°C to +50°C [-13F to 122F] -25°C to +50°C [-13F to 122F]
*Battery parameters and MRP are subject to change without prior intimation.

100% Made in India Product.

Do These Questions Come to Your Mind?

1.Is this really maintenance free?

Yes, CelPak is absolutely maintenance free, you don’t have to add any sort of battery water or clean the terminals.

2. What does one cycle mean?

A charge cycle is the process of charging a rechargeable battery and discharging it as required into a load.

3. Will this battery be safe to install in E-Rickshaws?

Yes CelPak is absolutely safe to install in E-Rickshaws and is non-flammable as well as non-explosive.

4. Do I have to use this battery system daily?

No, You can leave the CelPak unused to a period up to 60 days safely, the battery charge or condition will not deteriorate.

5. Does it have any protection?

Yes, CelPak comes with inbuilt protections like over voltage, under voltage, over current, under currents, fault detection.

6. How can I charge the battery?

CelPak can be charged by solar power, wind power, grid, and/or any dc source of the appropriate ratings.

7. Can I get custom sizes as per my requirements?

Yes, custom size are available on special requests, you can write to us on sales@vmechatronics.com

8. How much time does it take to charge these batteries to full capacity?

CelPak can be fully charged in 0.5/1/2/3 hours depending upon Charger used for charging the battery.

9. Does this emit any fumes or pollutants?

No, CelPak does not emit any fumes or pollutants, it is completely eco-friendly.

10. Do I have to add battery water to this every month?

No, You will never have to add battery water to CelPak.

11. Can they sustain hot and humid climate of India?

Yes, CelPak can sustain Indian weather conditions. It can operate in temperatures from -25°C to +50°C.

12. After how many years should I replace these batteries?

The life expectancy of CelPak is 5 years* (2500 cycles @ 80% DoD), so install CelPak and forget replacement headache for the next 5 years*.

To know more about Lithium battery based CELPAK for E-vehicles
